JAGUAR SMT6000V Desktop Mini Pick and Place Machine SMT6000V
JAGUAR Desktop Mini Pick and Place Machine SMT6000V. With small size, fast mounting speed, high mounting accuracy, simple and stable operation,and economic benefits. Mainly used to make sample, trial order, research and development, Many varieties of small batch production, Medium large patch production line in the ideal complementary equipment. It is the most cost-performance multifunctional small size pick and place machine at present on the market in China. Not only can help you avoid the instability of manual pick and place, but also can help you solve the problem of high labor costs, high space costs, low production efficiency and other series of problems. Highly improve the production ability.
| Name | Desktop Mini Pick and Place Machine |
| Model | SMT6000V |
| Vision system | Vision system correction function |
| PCB Size | 20mm*20mm~368mm*400mm |
| Number of head | 2 |
| Material support | Tube feeding, Belt feeder, Tray IC |
| Feeder | 20 |
| Number of stack | 26 |
| IC pallet rack | 2 (+Simple material tray IC frame) |
| Placement speed | 6000PCS/h |
| Placement accuracy | ±0.02mm |
| Support component | 0402~24mm,SOP,QFN,QFP,BGA,IC (tape width:8mm,12mm,16mm,24mm) |
| Machine size | L 648mm*W 690mm*H 470mm |
| Vacuum pump | -92KPA (Standard)(Mute type pump) |
| number of vacuum pump | 3(Standard)(Mute type pump) |
| Power supply | 220V , 50Hz |
| Average power | 100W |
Features:
1.Computer programming and control system, support PCB file direct import and online programminges.
2.International universal dual suction nozzle, can be parallel to support the large thickness of the components, 4 models can be used to select the nozzle.
3.Camera positioning, double vision correction, automatic Mark point recognition, system imaging.

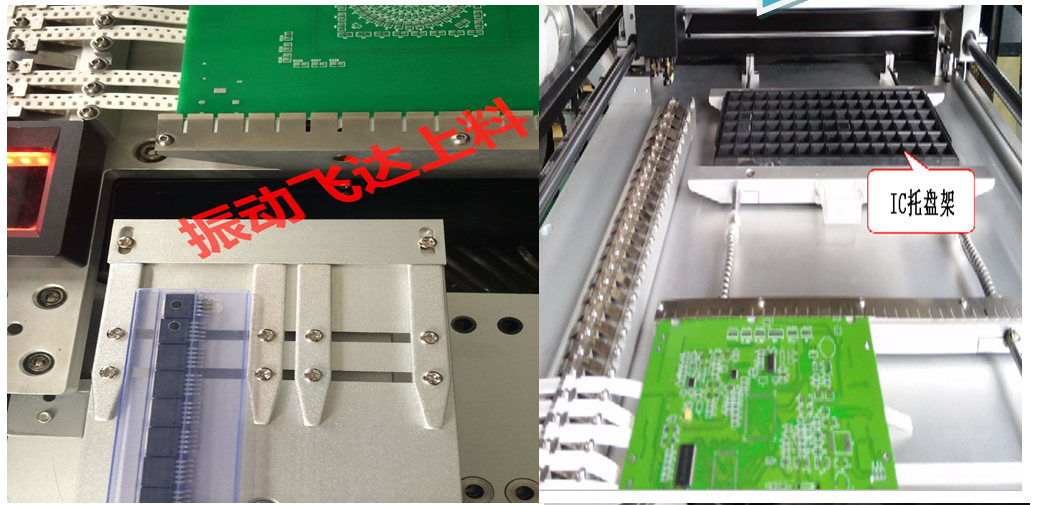

4.Support a variety of feeding modes: pneumatic feeder, belt frame, vibration feeder, IC tray rack, IC rack and so on.
